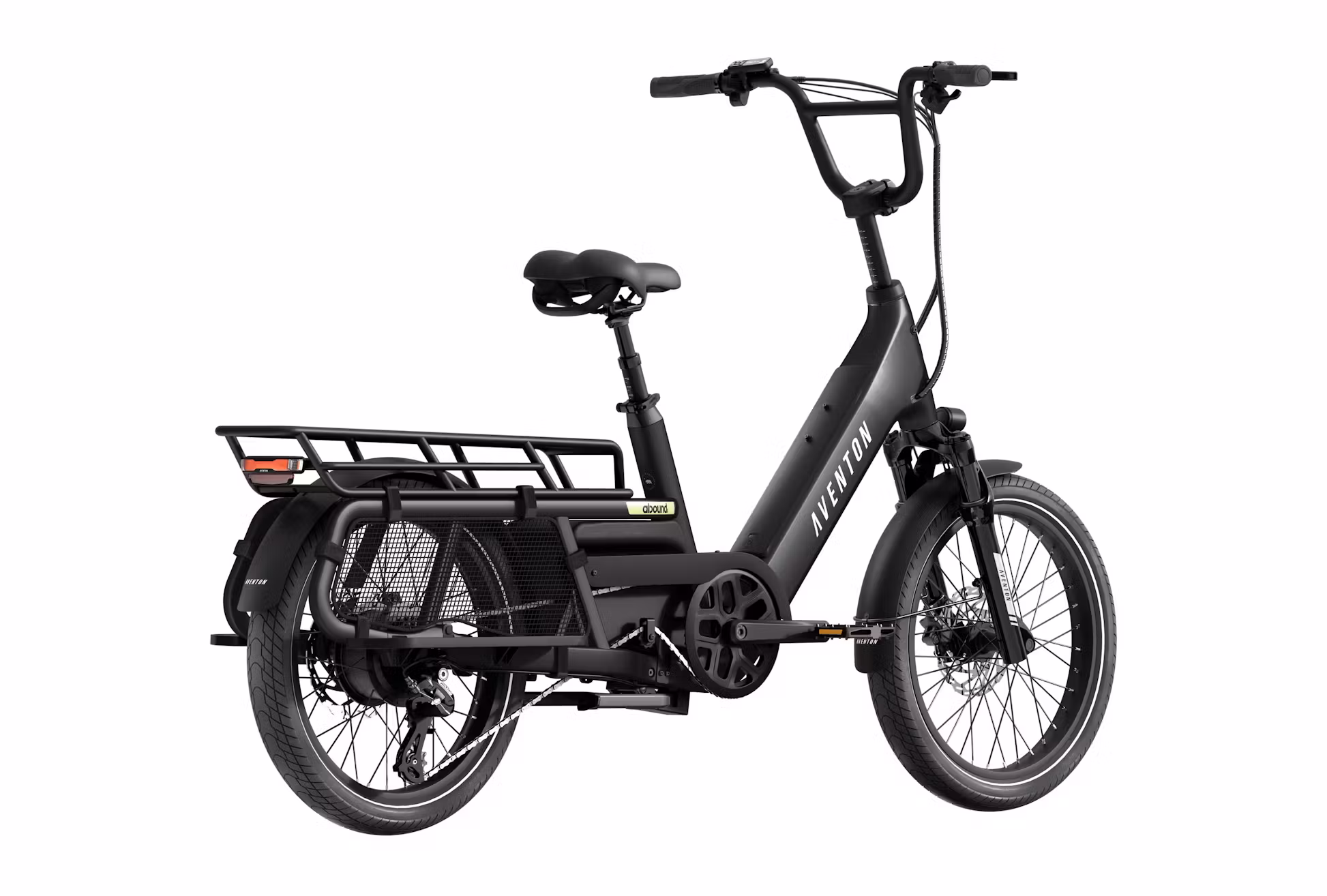

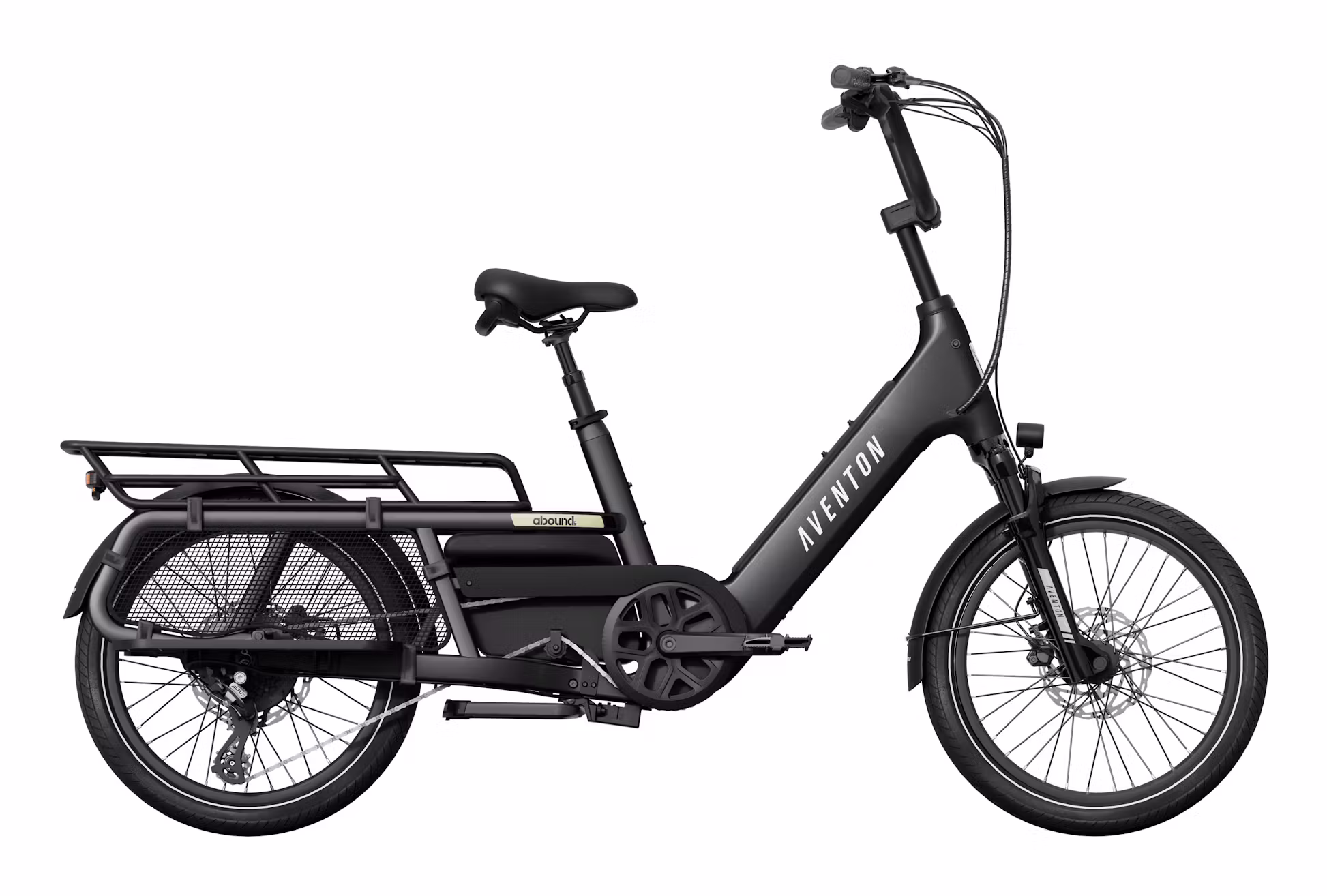

Abound LR
Carry More, Ride More!
The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you’re loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you’re bringing along. With the addition of ACU technology, you’ll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.
$2,799.00
Buy Now
General Info
- Model: Abound LR Ebike
- Weight: 88 lbs
- Total Weight Limit: 440 lbs
- Rider Height: 4’11” – 6’3″
- Ebike Class: Class 2 Ebike
- Range: Up to 60 miles
- Battery Safety Certifications: Certified to UL 2271
- Safety Certifications: UL and TUV Safety Certified UL 2849
- Ideal Use: Cargo & Utility
- Pedal Assist: 3 Levels (with Ride Tune Customization)
- Carry Capacity: Carry Up To 2 Passengers
- Water Resistance: Bike – IPX5 // Components – IPX6
Frameset
- Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
- Fork: Threaded Steerer Tube for Quill Stem 15×110 spacing, 51mm travel, adjustable lockout, black stanchions
- Rear Spacing: 175mm
- Fork Spacing: 110mm
- Frame Style: Step-Through
Wheelset
- Front Wheel: Double Wall Aluminum, 20in, 36-hole, 13g, 20×110 Thru Axle, Schrader Valve
- Rear Wheel: Double Wall Aluminum, 20in, 36-hole, 12g, Nutted Hub Drive Motor, Schrader Valve
- Tires: 20×3.0 Innova IA-2131 Urban Tire Reflective Sidewalls
Ebike System
- Motor: Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
- Motor Torque: 80Nm
- Display: Aventon BC147

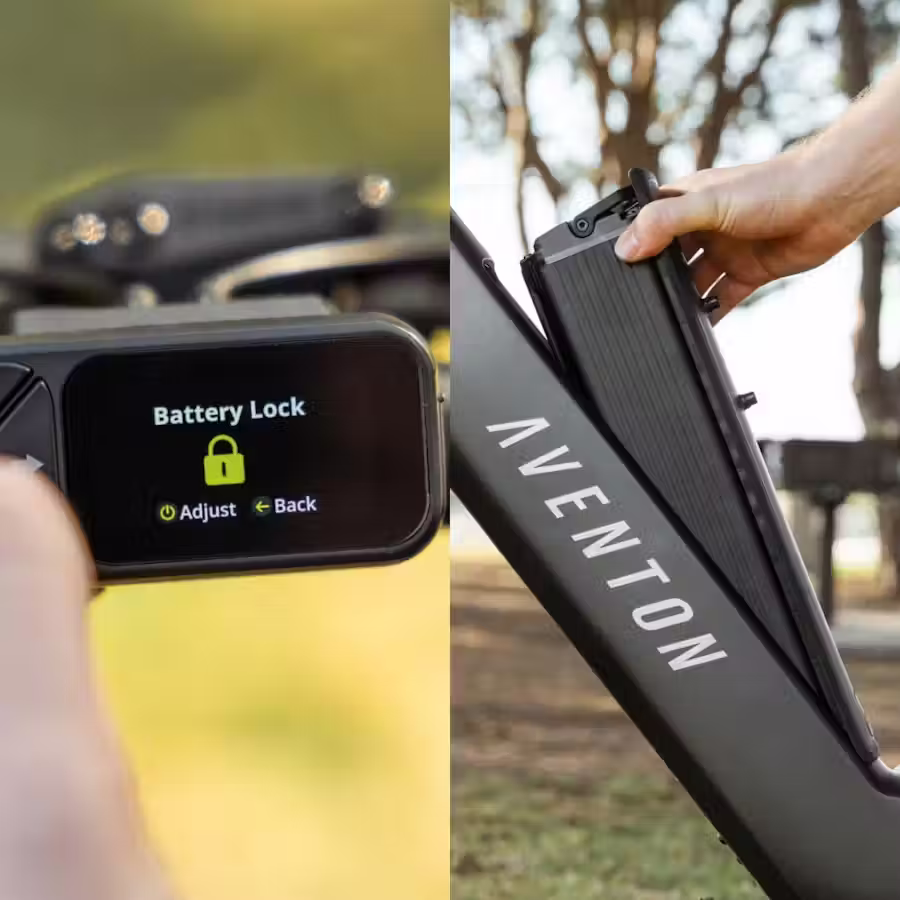

- Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
- Battery Weight: 8.7 lbs
- Controller: 36V, 33A
- Throttle: Aventon LH Handlebar Mounted
- Sensors: Double Sided Bottom Bracket Torque Sensor
- Charger: 36V Output: 42V/4A
- Charging Time: 5 hours
- Lights: Front and Rear Lights Integrated w/ Turn Signals
- Speed: Class 2
Brakes
- Front Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
- Rear Brake: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
- Front Brake Rotor: 180mm 6 bolt
- Rear Brake Rotor: 203mm 6-bolt
Drivetrain
- Rear Derailleur: Shimano Altus RD-M310 8 Speed
- Shifter: Shimano 8 Speed Trigger SL-M315-8R
- Chain: 7/8 speed 154L
- Cassette: 12-32T / 8 Speed Shimano CS HG200-8
- Chainring: 52 tooth
- Crankset: 3pc, 165mm crank arm
- Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
- Pedals: 9/16″ Composite Platform
Cockpit
- Saddle: Aventon Saddle w/ grab handle by Selle Royal
- Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length, 50mm travel
- Seatpost Clamp: 34.9mm
- Handlebars: BMX Style Aluminum 31.8mm, 720mm
- Grips: Aventon Ergonomic Comfort lock on grips
- Headset: H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
Included Accessories
- Fenders: Included
- Rear Rack: Included
- Rear Rack Weight Limit: 143 lbs
- Frame Storage Bag: Included
| COLOUR | Matte Stealth, Sage |
|---|---|
| SIZE | One size 4'11" – 6'3" |
