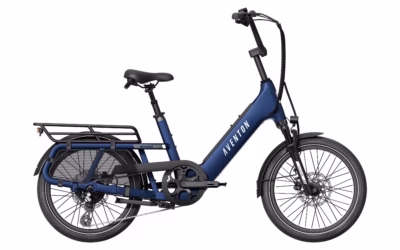

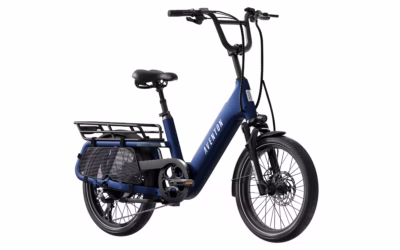

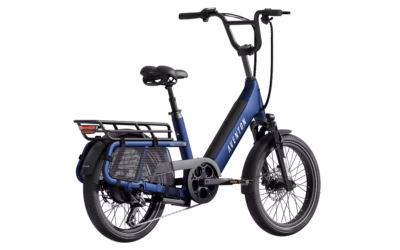

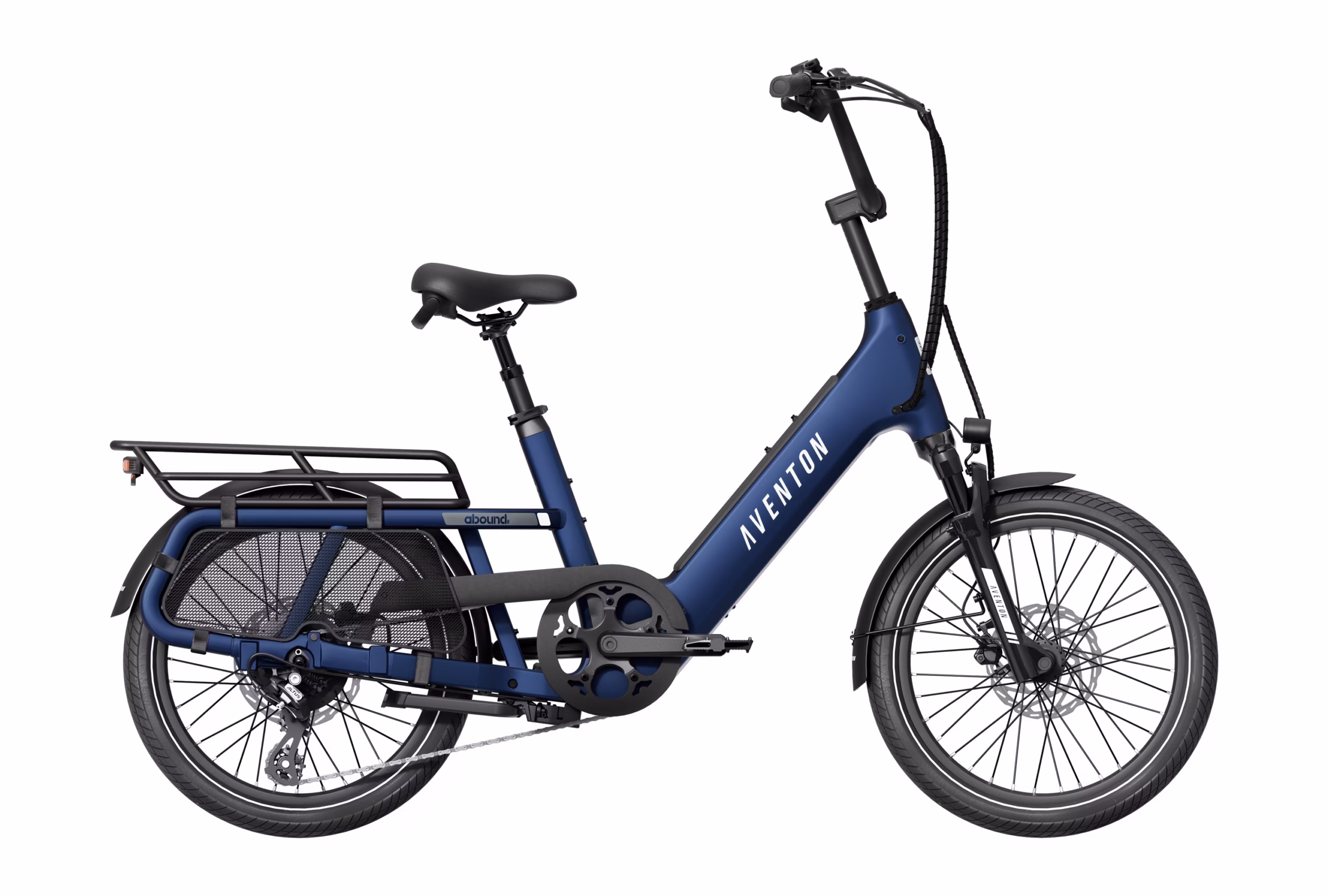

Abound SR
Compact cargo bike with added security features!
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
Original price was: $2,939.00.$2,699.00Current price is: $2,699.00.
Buy NowGeneral Info
- Model: Abound SR Ebike
- Weight: 80 lbs
- Total Weight Limit: 440 lbs
- Rider Height: 4’11” – 6’3″
- Ebike Class: Class 2 Ebike
- Ideal Use: Cargo & Utility
- Pedal Assist: 3 Levels (with Ride Tune Customization)
- Safety Certifications: UL and TUV Safety Certified UL 2849
- Battery Safety Certifications: Certified to UL 2271

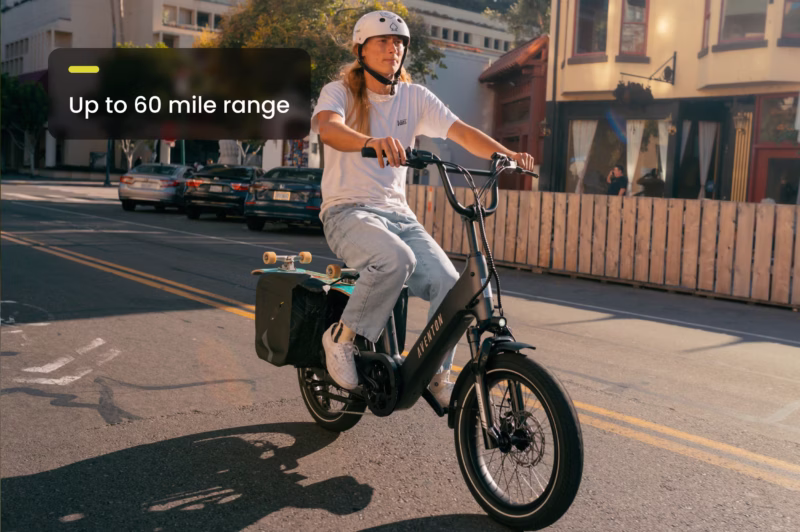

- Range: Up to 60 miles
- Folding: No
- Carry Capacity: Carry A Single Passenger
- Water Resistance: Bike – IPX5 // Components – IPX6
Frameset
- Frame: 6061 Aluminum Alloy with Internal Battery. One piece – Diecast aluminum front triangle
- Frame Style: Step-Through
- Fork: Threaded Steerer Tube for Quill Stem 15×110 spacing, 50mm travel, adjustable lockout, black stanchions
Wheelset
- Wheels: 20-inch, 12-gauge, 36-hole, double-wall aluminum, black
- Tires: 20 x 3.0 urban tire with reflective sidewalls
Ebike System

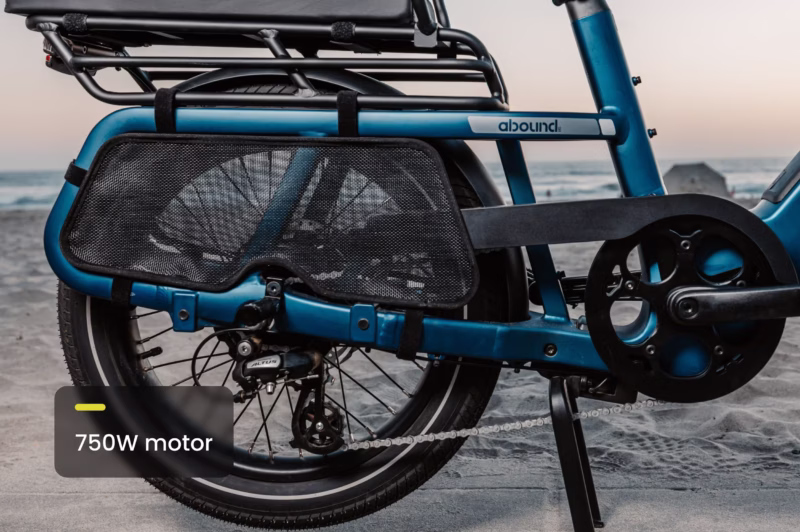

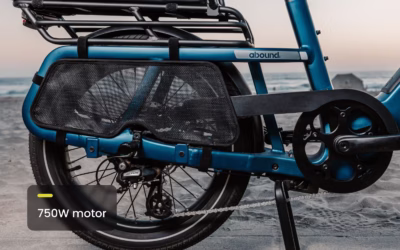

- Motor: Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
- Motor Torque: 80Nm
- ECU: Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication

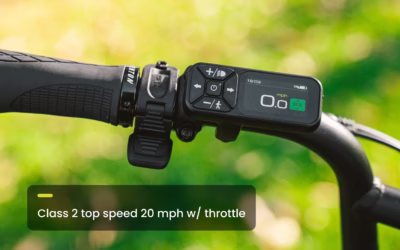

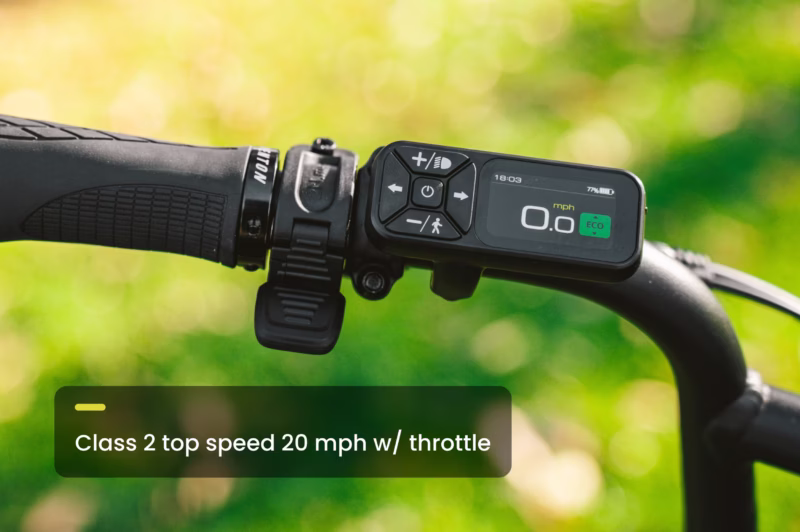

- Throttle: Aventon LH Handlebar Mounted
- Sensors: Double Sided Bottom Bracket Torque Sensor
- Controller: Aventon 4A 42V
- Display: Aventon BC147
- Speed: Class 2
- Battery: Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Brakes
- Front Brake: Tektro HD-E3520 hydraulic disc brakes
- Rear Brake: Tektro HD-E3520 hydraulic disc brakes
- Front Brake Rotor: Tektro 180mm 6 bolt
- Rear Brake Rotor: Tektro 203mm 6 bolt
Drivetrain
- Rear Derailleur: Shimano Altus RD-M310 8 Speed
- Shift Lever: Shimano SL-M315-8R 8 Speed
- Chain: 122 Link, 8 Speed
- Cassette: Shimano CS-HG200-8 8 speed Cassette, 12-32T
- Chainring: 52 tooth
- Chainring BCD: 130
- Crankset: 3pc, 165mm crank arm
- Pedals: 9/16″ Composite Platform
Cockpit
- Saddle: Aventon by SelleRoyal
- Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
- Seat Clamp: 34.9mm Quick Release
- Handlebars: BMX Style, 31.8mm bar clamp, 680mm width
- Stem: Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
- Grips: Lock-on ergonomic
Included Accessories
- Rear Rack: Included
- Kickstand: Included: E-lock
- Rear Wheel Mesh Guards: Included
- Rear Rack Weight Limit: 143 lbs
| SIZE | One size 4'11" – 6'3" |
|---|---|
| COLOUR | Cobalt, Haze, Stealth |
