Bike Components
Frame: Alu. 6061, 415MM, 20″ fat wheels
Suspension Fork: RST, Guide-T-20, with suspension
Brake F/R: Tektro, MD-M280 Mechanical Disc Brake System with L&R Brake Sensors. F: 180mm rotor R: 180mm rotor
Freewheel: 8 speed, 11-32T
Tire: CST, CTC06, 20×4.0
Saddle: Selle Royal
Handle Grips: Selle Royal, JF510, Brown
Crank: Das-Kit, CF52AA, 52T
Pedal: Wellgo, F178, foldable pedal
Rear Derailleur: 8 speed
Electric Components
Battery: Das-Kit, B1M-4815, 720WH, 48V 15Ah
Motor: Das-Kit, G20 Integrated rim motor, 48V 500W, max speed 32km/h
Controller: Das-Kit, CT6-FB, 48V 22A
Charger: Das Kit, 48V3A

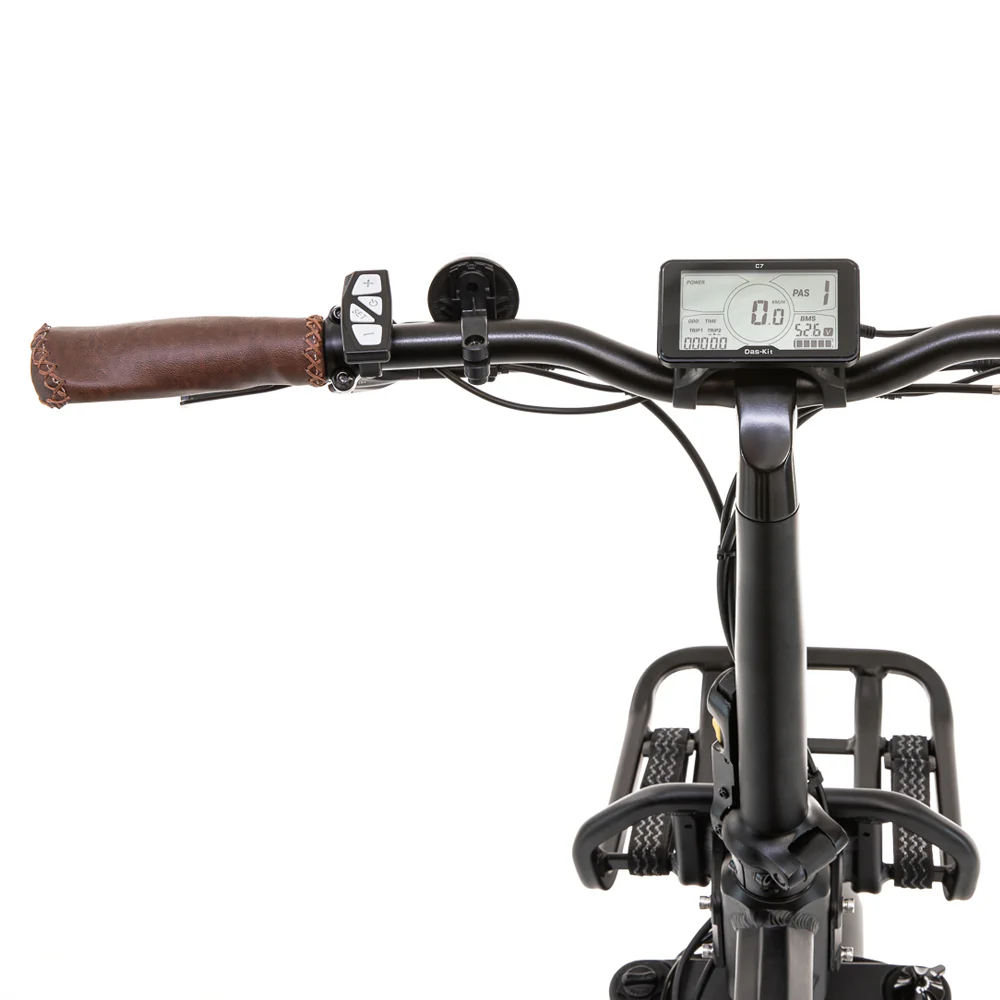

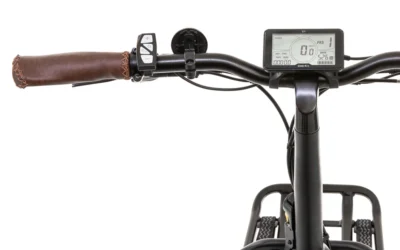

Display: Das-Kit, C7, LCD Display
Weight
Net Weight (with battery): 34.0kg
Battery Weight: 4.0kg
Total Weight (driver+bike): 140kg
