Level 4 ADV Step-Through
Mid-drive performance meets reliable commuter capability.
The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.
$3,899.00
Buy Now
General Info
- Weight: 61 lbs
- Total Weight Limit: 300 lbs
- Rider Height:
- Regular: 4’11” – 5’7″
- Large: 5’7″ – 6’1″
- Ebike Class: Class 1 (Convertible to Class 2 and/or Class 3)
- Water Resistance:
- Bike: IPX6
- Motor: IP67
- Range: Up to 110 Miles
- Safety Certifications: UL 2849
- Battery Safety Certifications: UL 2271
Frameset
- Frame: 6061 Aluminum
- Fork: 100 mm Travel, Adjustable Coil Spring with Preload Adjustment and Lockout, 15×100 mm Thru Axle, 43 mm Offset, Tapered Steerer Tube
- Rear Spacing: 135 mm
- Fork Spacing: 100 mm
Wheelset
- Front Wheel: 27.5″ Double Wall Aluminum, 36H
- Rear Wheel: 27.5″ Double Wall Aluminum, 36H
- Tires: Kenda K1052, 27.5 x 2.2″
Ebike System

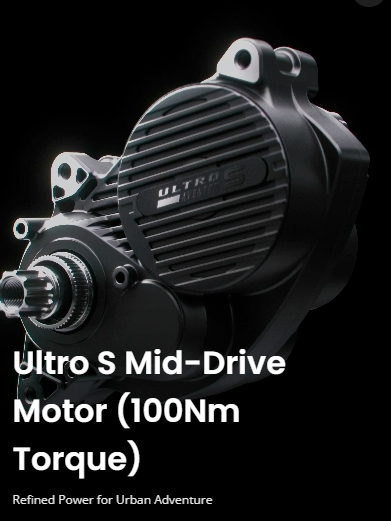

- Motor: Aventon Ultro S Mid-drive Motor
- Torque: 100 Nm
- Power: 750W Peak
- Display: A280 Center Display

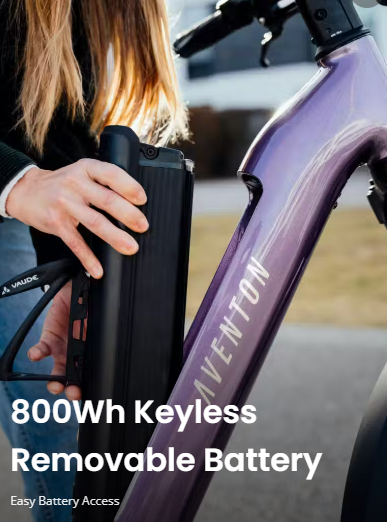

- Battery: Removable Lithium-Ion, 36V, 20Ah, 800Wh, Samsung 21700 58E cells
- Battery Weight: 8.7 lbs
- Throttle: Compatible, Not Included
- Charger: 42V 4A
- Charging Time (0%-100%): 5 hours
- Lights: Front and rear integrated
- Smart Features:
- Uphill Start Assist
- E-Shift / Autoshift
- Ride Tune

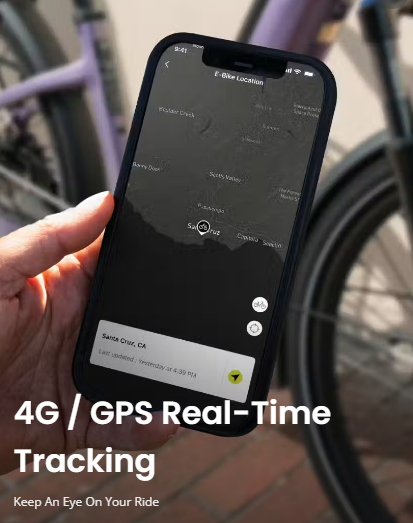

- 4G/GPS

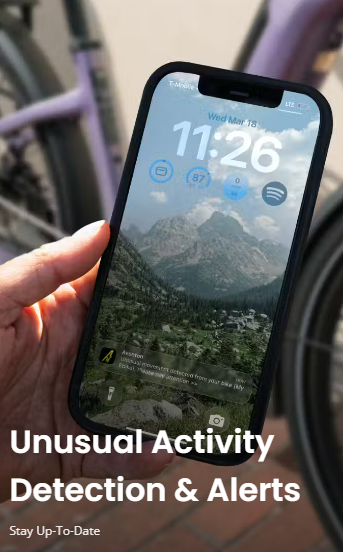

- Unusual Activity Detection

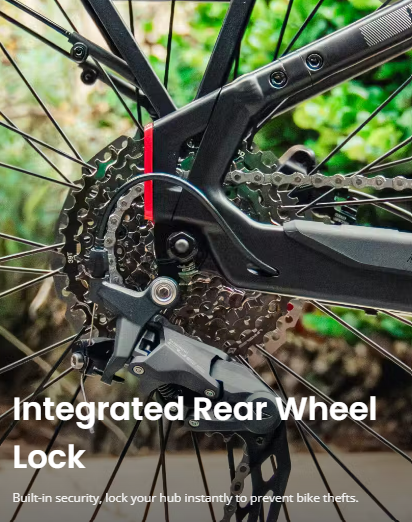

- E-lock / Hold Mode
- Remote Notification
Brakes
- Front Brake: Tektro HD-M3120 2-Piston Hydraulic Disc Brake
- Rear Brake: Tektro HD-M3120 2-Piston Hydraulic Disc Brake
- Front Rotor: 180mm 6 bolt
- Rear Rotor: 180mm 6 bolt
- Type: Hydraulic
Drivetrain
- Rear Derailleur: Shimano Cues 10-Speed
- Shifter: E-Shifter
- Chainring: 48T
- Crankset: 165mm ISIS Splined
- Chain: 9/10/11 speed, 126L
- Cassette: Shimano Cues 10-Speed, 11-39T
- Pedals: 9/16″ Composite Platform
Cockpit
- Saddle: Aventon Saddle
- Seatpost: Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length
- Seatpost Clamp: 34.9 mm
- Handlebars: 31.8 mm, 680 mm Width, 30 mm Rise
- Grips: Aventon Lock-on grips
Included Accessories
- Rear Rack: Included
- Fenders: Included
- Integrated Lights: Included
| COLOUR | Haze, Matte Black |
|---|---|
| SIZE | Large 5'7"-6'1", Regular 4'11"-5'7" |
