BIKE COMPONENTS
Frame: Alu. 6061, 26″x480mm

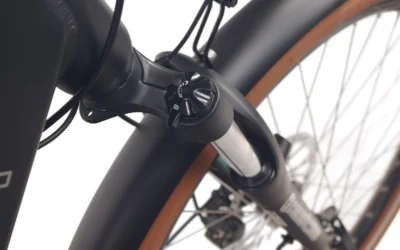

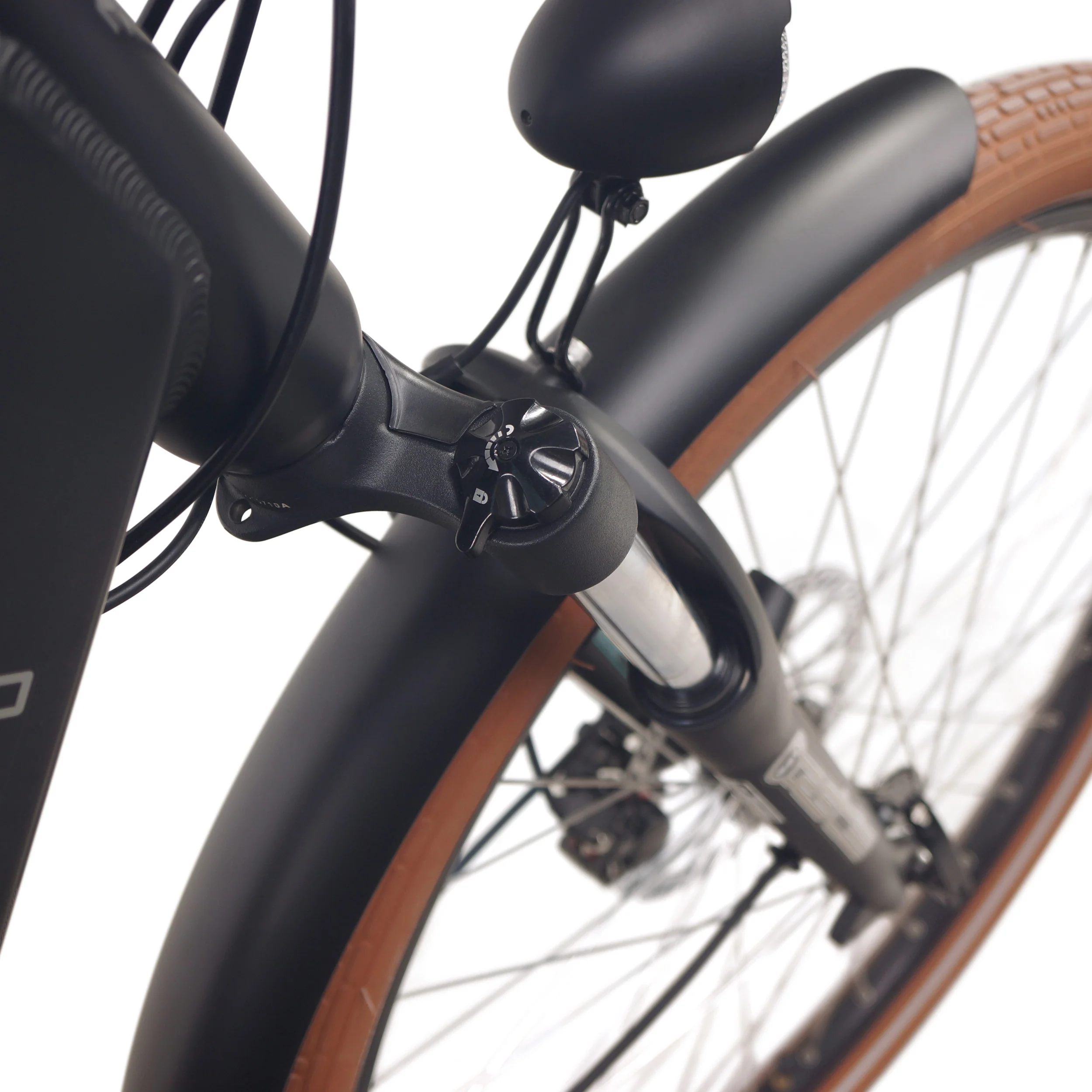

Suspension Fork: RST, NEON-TNL-26, with hydraulic lock system
Brake: F: Das-Kit, hydraulic disc brake, DK-100E, 180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100, 180mm rotor
Freewheel: 8 Speed, 11-32T
Tire: CST, C1779, 26×2.15
Saddle: Selle Royal, Justek: 6534 UEN
Stem: Promax, MQ-579
Crank: Das-Kit, 46T

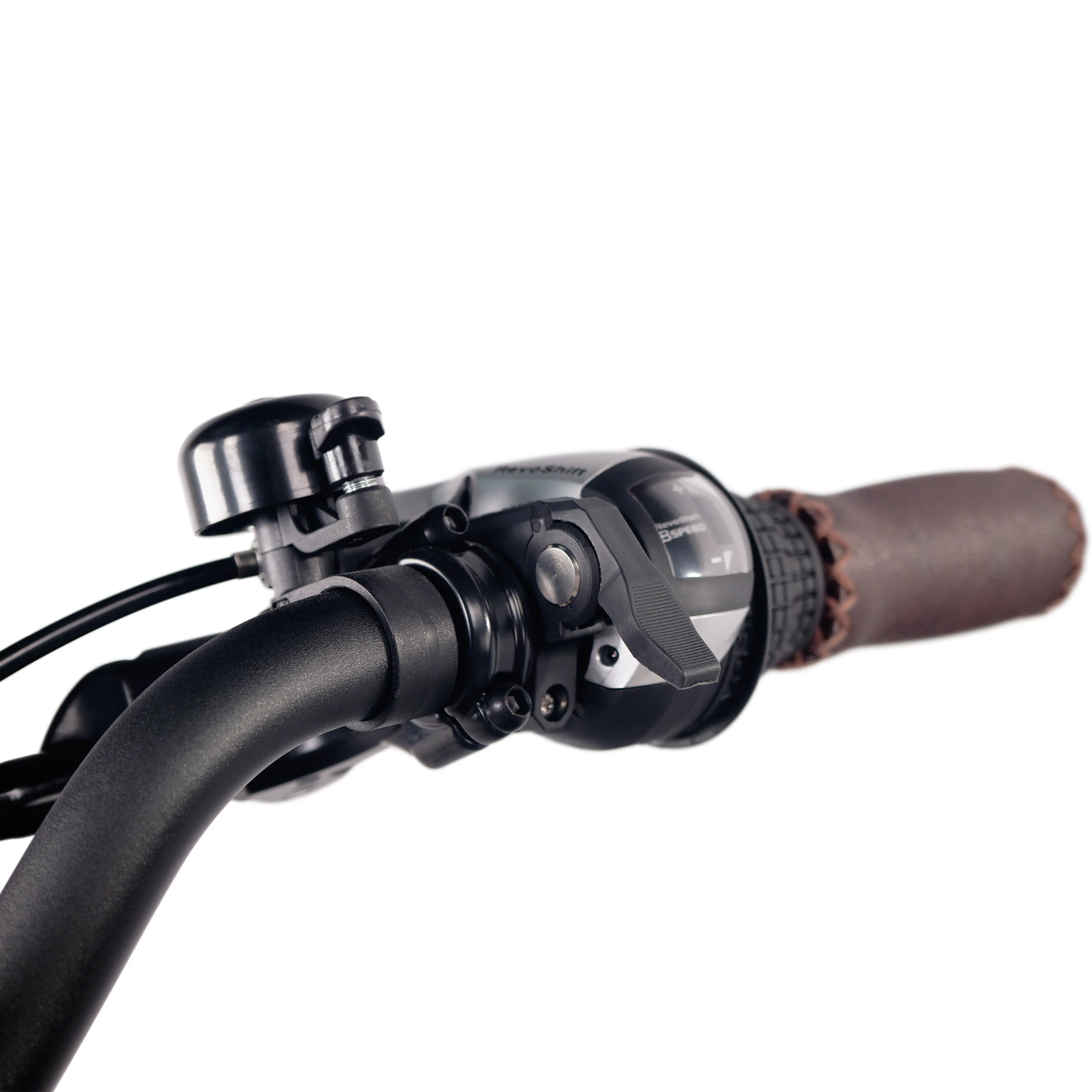

Shifter Right: Shimano, Tourney, SL-RS45-8R, 8 Speed
Derailleur: R: Shimano, Acera, RD-M360
Chain: KMC, Z8.3RB, Silver
ELECTRIC COMPONENTS

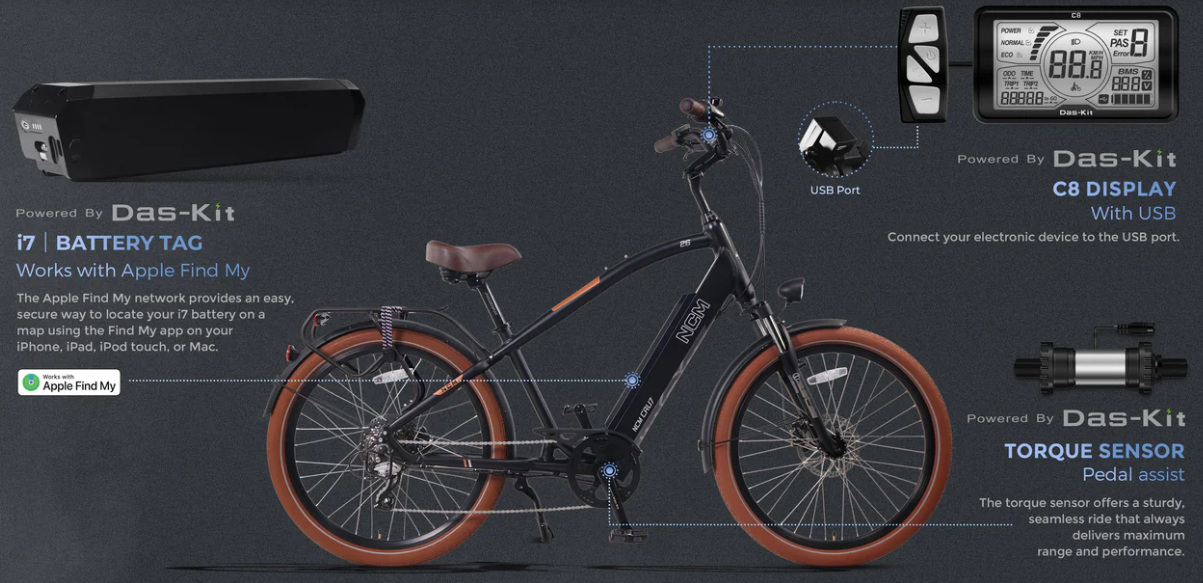

Battery: Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology
Motor: Das-Kit, X15, rear drive motor, 48V 500W, 32km/h
Controller: Das-Kit, T7, 48V 18A
Charger: Das-Kit, DK483, 48V 3A

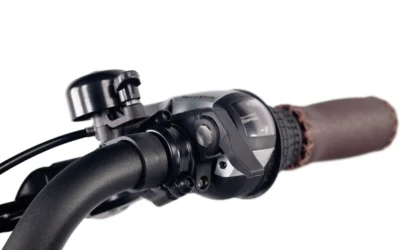

Display: Das-Kit, C8, with USB

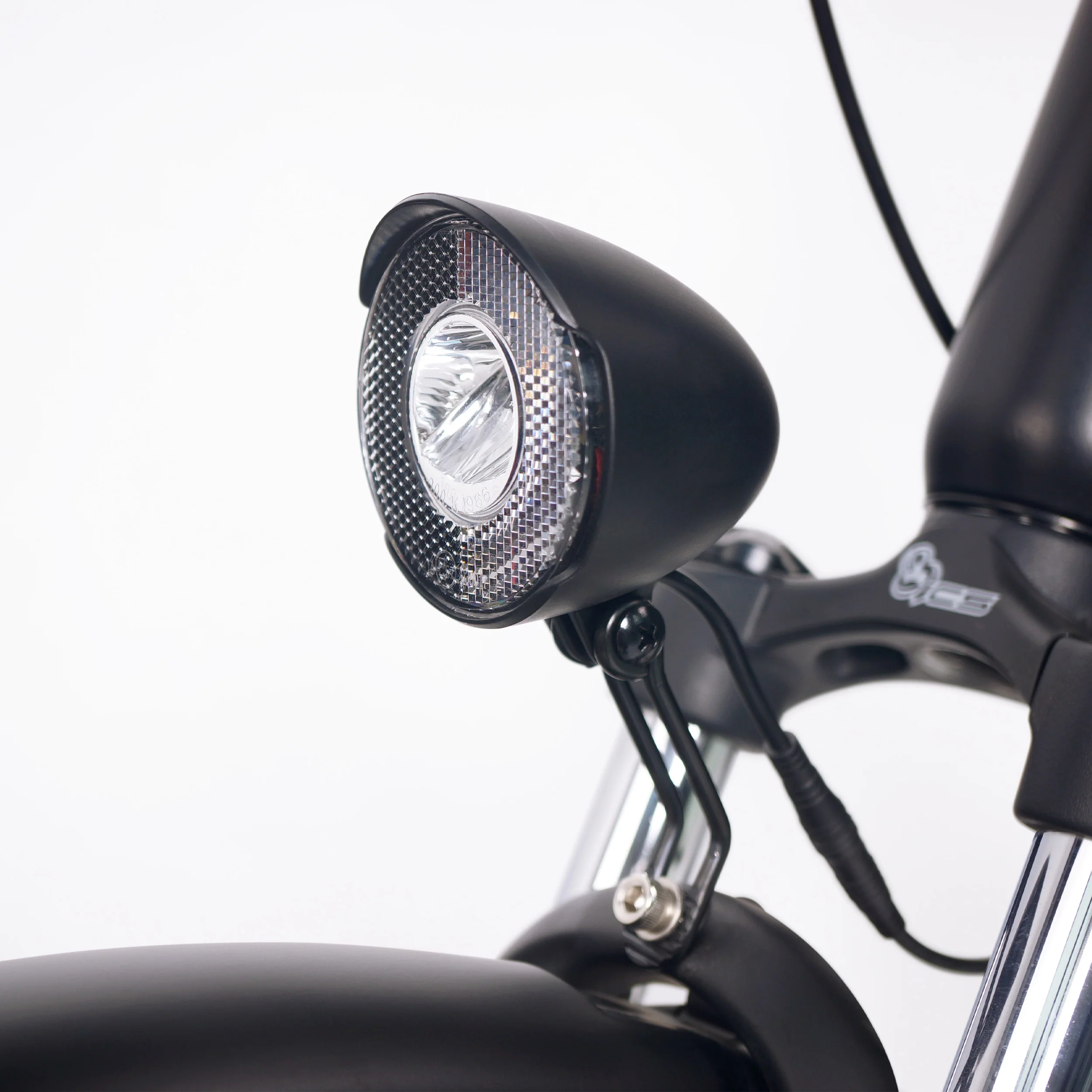

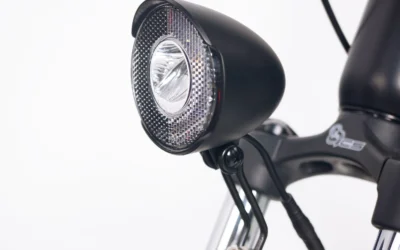

Front Light: DH006, 48V, 25Lux

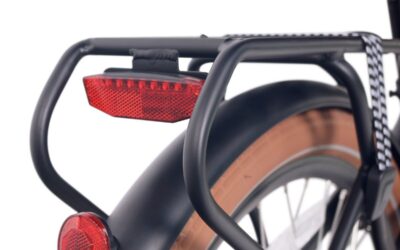

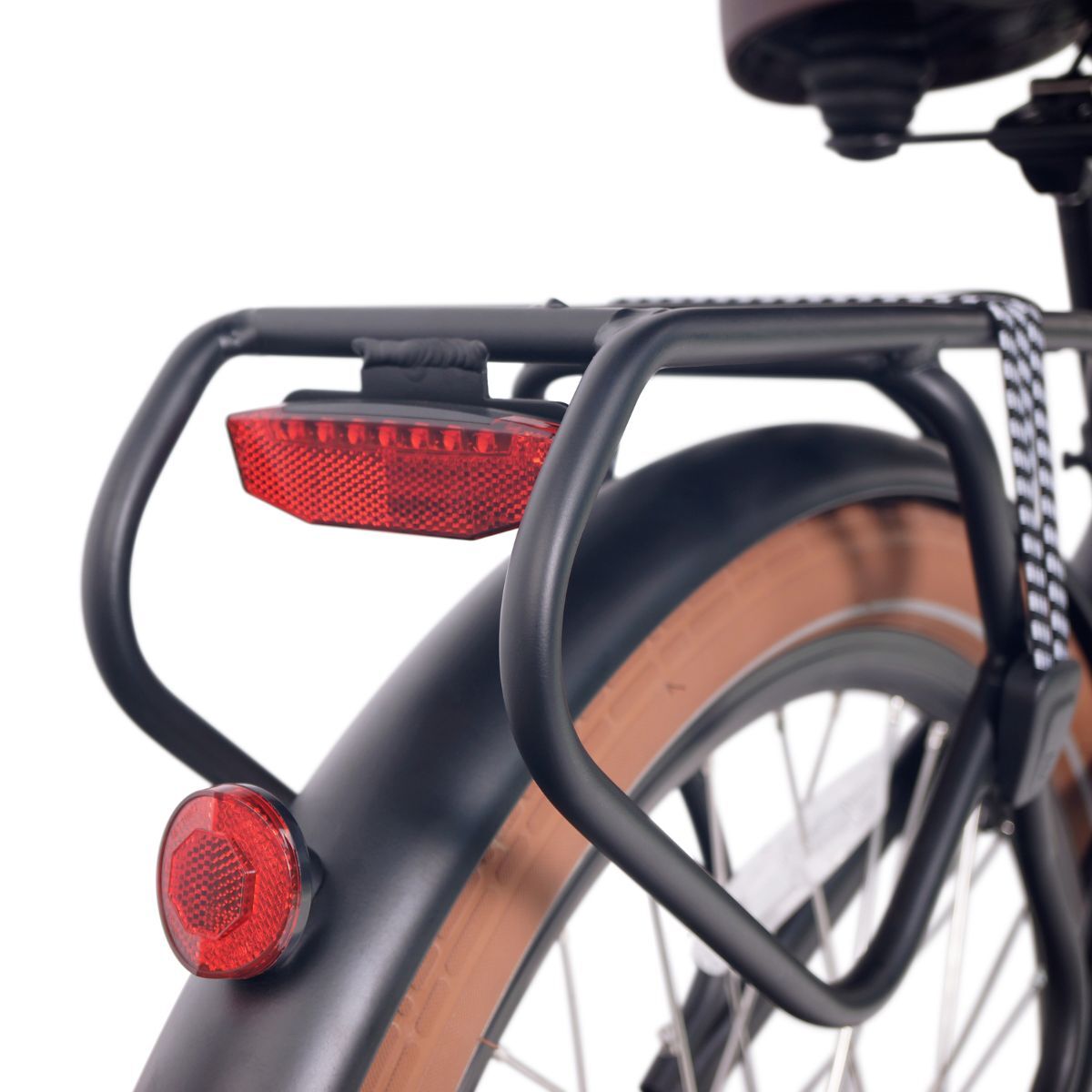

Rear Light: DR009, 48V
WEIGHT
Weight (without battery): 24.2KG
Battery Weight: 4.8KG
Max Load (driver+bike): 140KG
